Ant, Term folded dipole 43m 150W
Part Number: 15-00411-003
MODEL
C411-43M
PART NUMBER
15-00411-003
LENGTH (M)
43
POWER
150
Codan’s 411 Terminated Folded Dipole Antenna
is a 2-wire antenna designed for broadband

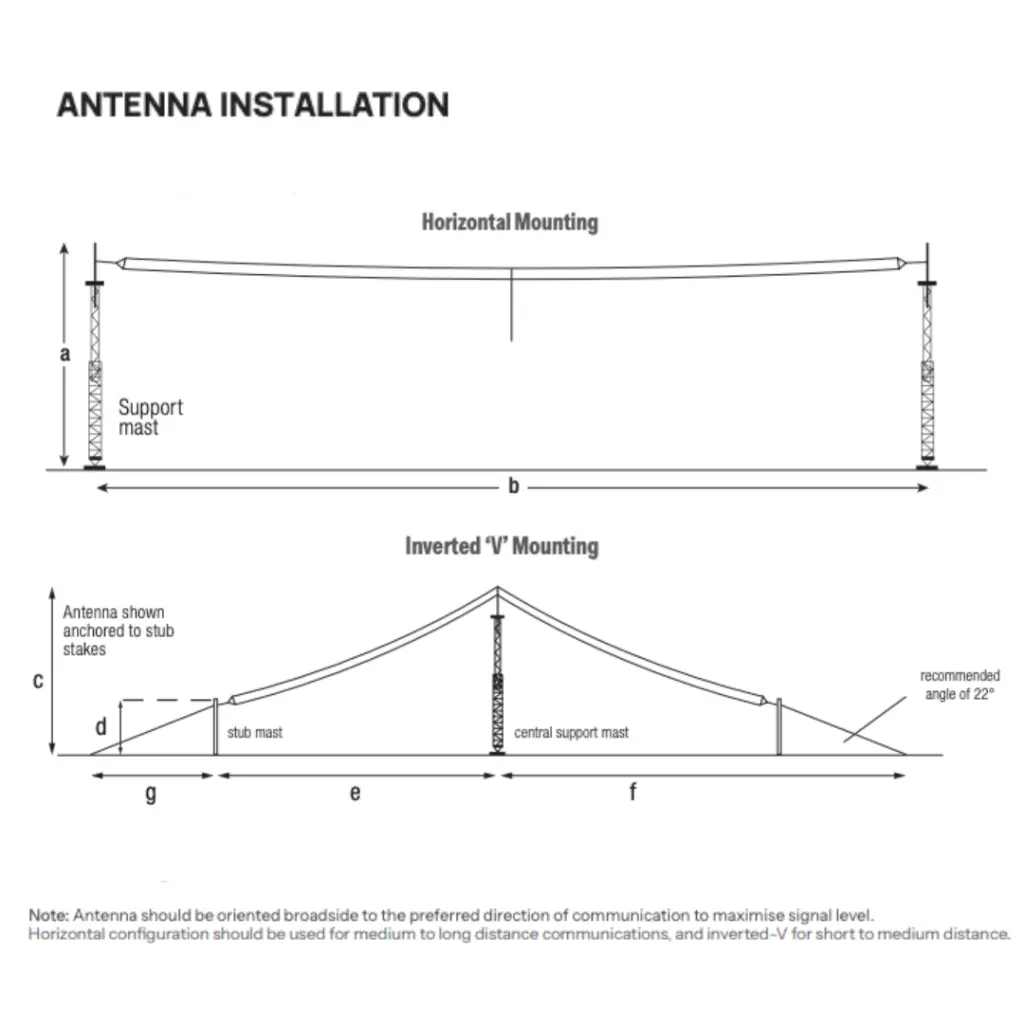

operation in fixed stations. Easy to install, the 411 Antenna can be mounted horizontally or as an inverted-V using suitable support structures.
PERFORMANCE
The 411 Antenna provides excellent performance for short to
medium distance HF communications. To optimise the antenna
for Near Vertical Incidence Skywave (NVIS) propagation use
an inverted V configuration or adjust the installed height above
ground. Designed and manufactured with corrosion and UV
resistant materials to withstand all types of hostile environments.
ANTENNA MODEL
The model of 411 Antenna should be selected to suit the application depending on the required power rating and the maximum amount of available space to install it. As a general rule the radiation efficiency of the 411 Antenna increases with antenna length so it is recommended to select the longest variant that will
suit available space.
The 150W power rated 411 Antennas are available in a
standard “C” version or a militarised “M” version. The M
version antennas have blackened spreader bars, stainless
steel wire elements, and an N-type RF connector.
